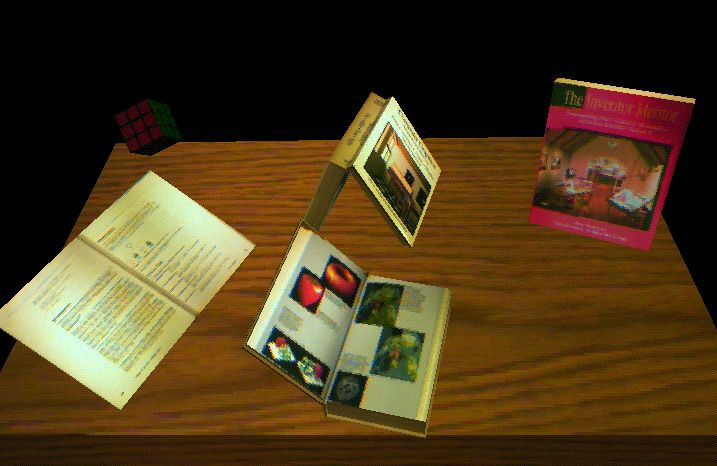

  alldesk.iv.gz (15 MB uncompressed)
•
  book_OpInv1.iv.gz (1.4 MB uncompressed),
  book_OpInv2.iv.gz (1.4 MB uncompressed),
  book_OpInv3.iv.gz (1.4 MB uncompressed)
•
  book_foley1.iv.gz (4.3 MB uncompressed),
  book_foley2.iv.gz (4.3 MB uncompressed),
  book_foley3.iv.gz (4.3 MB uncompressed),
  book_foley4.iv.gz (4.3 MB uncompressed)
•
  rubiks.iv.gz (450 KB uncompressed)
•
  smallrubiks.iv.gz (120 KB uncompressed)

Overview:

Our intent was to develop a proof-of-concept program that would explore the issues, challenges, and decisions involved in writing such a program. As such, our program is missing quite a few basic features that would eventually be desirable, such as saving an instance of a domain, rather than just the Inventor file. However, we think we've built a subset large enough to demonstrate that this approach may have some merit, especially for classes of objects that lend well to procedural description.

Our basic idea is that we break the modeling process into two distinct phases:

• Domain Development In this phase, the user writes a C++ class that describes some knowledge, common sense, or constraints about a specific class of objects, which we call the domain. This domain has three basic operations:
  • Initialize In this phase, the user sets up the user event callbacks and any other necessary initialization of internal state of the object. The parameters of the domain are initialized to default values.
  • Interact/Refine In this phase, the domain uses the callbacks (in response to user events) to update the paramaters of the domain for this specific instance.
  • Create Geometry In this phase, the domain generates a "current" model, based on the object instance's parameters. This model is an Inventor file, which can be viewed by the user and saved to a file.

• Interactive Modeling In this phase, the modeler uses the program, with the new built-in callbacks for a specific domain, to model some instance of that domain. As the program responds to user interaction (which may involve high-level functions, such as calling a computer vision algorithm), the domain updates its parameters to refine the domain instance until it nearly matches (to the desired degree) the real-life object.

This project does not really introduce any new vision algorithms. Rather, it provides a framework in which such algorithms can be applied. In fact, the programmer of the domain-development phase has almost unlimited freedom in his choice of actions. We hope that virtually any kind of vision algorithm or scanning technique (such as laser scanning) could be incorporated in this framework. Furthermore, since the domain developer can add any type of data structure to the domain, the domain developer could even add such things as confidence values, standard deviations, and interval arithmetic. The only requirement is that the developer can then map this data (in whatever form) to some instance as an Inventor file.

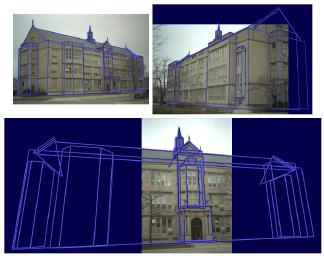

Background:

Domains:

• base domain:
  This is the prototype for every domain. It defines the basic operations (initialize, handle callbacks, and create geometry). It also has some basic controls that seem generally useful, such as changing modes in the modcam program (A subclass domain can add additional modes, but the basic modes are: none, manipulation, photo capture, and edge-detection).
• box domain:
  This simple domain handles texture-mapped cubes. In texture mode, the user aligns the object with the background and then clicks on the face. The object grabs the background texture and maps it on the face.
• openbook domain:
  This domain inherits the box domain. It uses either 2 or 6 textured cubes to represent the covers, spine, and text of two halves of a book. It has built-in constraints to align the two halves so that the spine is always in contact.
• banana domain:
  This domain inherits the base domain. It includes a function to grab texture onto any quad mesh, provided the mesh already has texture coordinates. (This domain is still under construction).

User Interface:

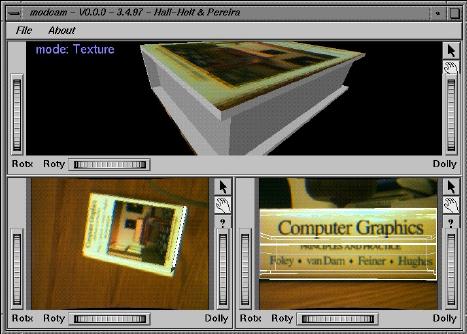

Modcam has a simple user interface based on the examiner viewer in the SGI's Open Inventor package. As you can see in the above (middle) snapshot, there are three windows. The top window is used for interacting exclusively with the developing model, while the lower two windows allow interaction with pictures and/or the model. Each window has an associated set of standard widgets, which allow for rotation, translation, zoom, and other operations.

The current mode of interaction is shown in the top left of the top window. The default mode is "none", in which all manipulations change the camera. Some modes are domain-independant, like the Texture mode, used to assign textures to faces of the model, and the Edge mode, used to specify edges in the picture(s). Domain specific modes also exist for actions that only make sense in particular contexts. For example, a mode exists for directly modifying how open an open book should appear. Finally, there are a couple menu options, such as for saving an Inventor file. We expect a more sophisticated interface could be valuable for more complex domains, but this approach has served us well so far.

The avaliable commands are listed in the modcam user's guide.

Calibration:

We employed the techniques presented in Prof. Tomasi's Introduction to Computer Vision course to calibrate the Indycam. We first took a picture of a series of concentric circles on a flat paper at a known distance from the camera. The circles were exactly .5 cm apart, and we estimated the distance to the camera's focal point to be 23 cm. We examined this picture to ascertain that the aspect ratio was close to 1 (it was within 1% of 1) and to calculate the field of view, which is roughly 42 by 30 degrees. We then found the pixel coordinates of the intersections of the circles with the horizontal centerline, and used a least-squares fit to approximate the fifth-order polynomial that could best map uniformly spaced pixel coordinates to the coordinates found along the centerline. With the assumption that geometric distortion is radially symmetric, we used this fifth-order polynomial to "unwarp" subsequent images. Specifically, given a pixel location in the unwarped image, we mapped it back using our polynomial to the corresponding position on a ray out from the center on the original image, and interpolated between the nearest four pixels to obtain the desired color value.

Edge Alignment:

First, we simplify the problem by assuming that we are looking for an edge that is straight, and looking for a straight segment that well approximates the user input. We draw a segment connecting the first and last points of the user's curve, then translate it orthogonally to balance the "weight" of the points on either side.

Second, we define a cost function on each of the points of our initial image. We are using a simplification of the cost function used by Mortensen and Barrett for their Intelligent Scissors program, namely a linear combination of the Laplacian zero-crossing function and the gradient magnitude. The latter of these is scaled to lie in the range [0,1], and then we use weights of .7 and .3 for the linear combination. This defines a cost on each grid point. We then extend these samples to a planar region by bilinear interpolation, and define the cost function for a segment to be the line integral of this function over the length of the segment, divided by the length of the segment.

Third, we make local modifications to the endpoints until a local minimum of the cost function is reached. So far, we have implemented an approach that only examines segments whose end-points lie on the grid. We consider all the neighboring gridpoints of our initial endpoints, and pick the pair of neighbors which reduces the cost function by the greatest amount. We then iterate, but limit movement to the a single general direction after the first iteration. That is, we only allow an endpoint to move toward one of the neighboring pixels of the initial pixel "direction" after the first iteration.

The above technique for edge location has several drawbacks. First of all, the cost function has many local minima for typical images, so many that the edge can easily "get stuck" due to variations in image intensity that seem invisible to the casual observer. One way to address this problem would be to define our cost function using a pyramid of resampled images, so that more distant, but strong, edge features can have a larger region of influence. Second, it is not that uncommon on very strong edges for this technique to shrink the length of the segment to almost zero. It would be preferable for the segment to instead have a propensity for growth, so that only a section of an edge needs to be indicated in order for the entire edge to be recovered, as was done in the Debevec's facade program. For this, we could redefine our cost function to reward greater lengths, but we would need to do so carefully to avoid making them overlong. Finally, we would like to use gradient descent methods in order to allow edge location to sub-pixel accuracy. At the moment, however, the quality of the images we get from the camera may not justify any further enhancement in this direction.

Parameter Optimization

Future Work:

• Save Domains, not just the resulting Inventor files.
• Smooth the seams between images.
• Write the "texture-mapped Inventor object" domain. It could load in a pre-existing geometric Inventor model, and allow the user to use the camera to place texture on it, and then save the texture-mapped object.
• Build a polyline primitive, which would allow a user to trace a line on the pictures from two angles, and create a 3-D polyline that could be used to affect modeling.
• Write other domains (trees, etc).

Code Organization:

• Modcam Core:

  • modcam.C
    The main file. It sets up all the widgets, and the core callbacks.
  • Interface.C,h
    Sets up the menubar, and handles file I/O.
  • PullDowns.h
    Definitions for the pulldown menus.
  • WorldInfo.C,h
    Classes to keep track of the world data. Left over from noodle, and nearly obsolete.
  • find_edge.C,h
    Routine to use gradient-descent to find edges in an image.
  • debug.C,h
    Debugging utilities.
• Domain Interface:

  • domains.C,h
    Contains enumerated lists of the available domains.
  • domain.C,h
    The prototype domain. It handles some of the generic domain events.
• Specific Domains:

  • boxdomain.C,h
    (Inherits domain): The domain of textured boxes.
  • openbookdomain.C,h
    (Inherits boxdomain): The domain of open/closed textured books, assuming no curved edges.
  • bananadomain.C,h
    (Inherits domain): The textured banana domain.

References

Note:
= New references (not mentioned in our paper)

1. Curless, Brian and Marc Levoy, "A Volumetric Method for Building Complex Models from Range Images," Siggraph 1996, 303-312.

2. Debevec, Paul E., Camillo J. Taylor, and Jitendra Malik, "Modeling and Rendering Architecture from Photographs: A hybrid geometry- and image- based approach," Siggraph 1996, 11-20.

3. Galyean, Tinsley, "Sculpting: An Interactive Volumetric Modeling Technique," Siggraph 1991, 267-274.

4. Gortler, Steven J., Radek Grzeszczuk, Richard Szeliski, and Michael F. Cohen, "The Lumigraph," Siggraph 1996, 43-54.

5. Hanrahan, Pat and Paul Haeberli, "Direct WYSIWYG Painting and Texturing on 3D Shapes", Siggraph 1990, 215-223.

6. Mortensen, Eric N., and William A. Barrett, "Intelligent Scissors for Image Composition," Siggraph 1995, 191-198.

7. Sato, Yoichi and Katsushi Ikeuchi, "Reflectance analysis for 3D computer graphics model generation," technical report CMU-CS-95-146, 1995.

8. Shewchuk, Jonathan R., "An Introduction to the Conjugate Gradient Method Without the Agonizing Pain," technical report CMU-CS-94-125, March 1994. (postscript available)

9. Szeliski, Richard, "Rapid Octree Construction from Image Sequences," CVGIP: Image Understanding 58, 1 (July 1993), 23-32.

10. Taubin, Gabriel, "A signal processing approach to fair surface design," Siggraph 1995, 351-358.

11. Tsai, Roger Y., "A Versatile Camera Calibration Technique for High Accuracy 3D Machine Vision Metrology Using Off-the-shelf TV Cameras and Lenses," IEEE Journal of Robotics and Automation, 3(4):323-344, August 1987. (Software available.)

12. Wang, Sidney W., and Arie E. Kaufman, "Volume Sculpting," 1995 Symposium on Interactive 3D Graphics, 151-156.

13. Zeleznik, Robert C., Kenneth P. Herndon, and John F. Hughes, "SKETCH: An Interface for Sketching 3D Scenes," Siggraph 1996, 163-170.
